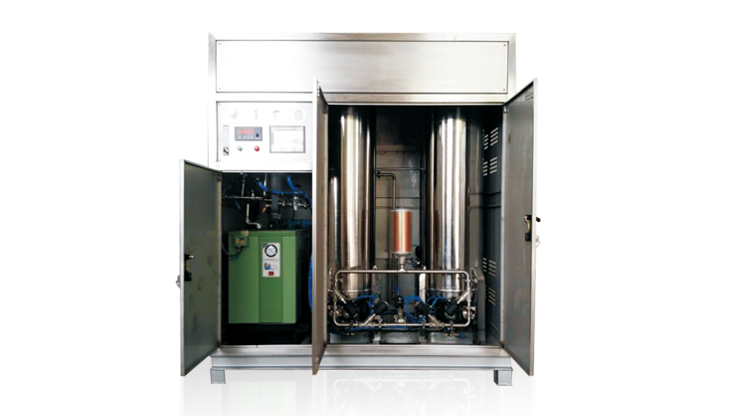

節能醫藥制氮機(C型)


該機型的運行狀態為“全自動運行”(無需人為操作設備的啟停),空氣進口、氮氣出口設有過濾調壓部件...


產品簡介

主要性能和結構特點 / Main performance and structural characterisitics

該機型的運行狀態為“全自動運行”(無需人為操作設備的啟停),空氣進口、氮氣出口設有過濾調壓部件,內置冷凍干燥機及C、T、A三級過濾器、自動排水器。PC控制系統選用西門子主機。氮氣純度由99.99-99.999%氮氣分析儀在線檢測,氮氣純度不合格自動排空并報警,合格氮氣輸出后達到設定壓力自動停機。節省空壓機能耗達10-30%不等。制氮吸附塔交替運行排空時,加裝有快速排空裝置,以達到制氮工藝快速脫附要求,延長了工藝電磁閥的使用壽命。

Running state of the machine is "automatic operation" (that is, without the need for operating the start-stop of the equipment). Air inlet and nitrogen outlet are equipped with pressure regulating components, the built-in refrigeration dryer and C, T, A three-stage filter and automatic drainage device. Siemens host is used in PC control system. Nitrogen purity is monitored by analyzer on-line, by 99.99-99.999% unit. Automatic emptying and alarm are set if the purity of nitrogen is unqualified, and the system will automatically stop when it reaches the set pressure after qualified nitrogen output, thus, saving the air compressor's power consumption by up to 10-30% range. Alternately emptying system of nitrogen adsorption tower, with a rapid emptying device, in order to achieve requirements of rapid stripping in nitrogen making process, prolongs the life of electromagnetic valve.

適用范圍 / Applicable

適用于食品醫藥行業:面包、月餅、蛋黃派、法式面包、餅干、巧克力、雪米餅、藥品、葡萄酒、茶葉以及各種農副產品的充氮保鮮包裝。冶金行業:粉末冶金、銅加工氮氣保護;化工行業:石油、天然氣、化工氮氣保護;金屬熱處理氮氣保護;磁性材料的氮氣保護等等。

此款機型適合于對氮氣質量要求比較高的中小食品企業進行充氮包裝。

Applicable to the food and pharmaceutical industry : the nitrogen-filled preservation and packaging of bread, moon cake, yolk pie, French bread, biscuits, chocolate, snow cake, pharmaceuticals, wine, tea and various agricultural and sideline products. Metallurgical industry: powder metallurgy, copper processing nitrogen protection; Chemical industry : petroleum, natural gas, chemical nitrogen protection; nitrogen protection of metal heat treatment, nitrogen protection of magnetic materials and so on.

 This machine is suitable for small and medium food enterprises with demand of high-quality nitrogen-filled packaging.

技術參數 / Technical parameter

型號規格
Model
氮氣產量
Nitrogen
production Nm3/h
功率
Power
KW
氮氣純度
Nitrogrn
purity %
氣源壓力
Gas pressure
Mpa
產氮壓力
Pressure of production
nitrogen Mpa
外形尺寸
Appearance size
L×W×H(mm)
SC-10C 碳鋼、不銹鋼
Carbon steel,
Stainless steel
10 1 ≥99.9-99.999 0.8-1.0 0.1-0.65 1300×1130×1350
注:可供四臺枕式包裝機充氮氣或二臺大立式包裝機充氮氣,選配空壓機排量:1.0Nm3/min-10
Ps: It enables 4 pillow packaging machines or 2 big vertical packaging machine to fill nitrogen and the matched air compressor capacity is 1.0Nm3/min-10
SC-15C 碳鋼、不銹鋼
Carbon steel,
Stainless steel
15 1.5 ≥99.9-99.999 0.8-1.0 0.1-0.65 1300×1130×1500
注:可供五臺枕式包裝機充氮氣或三臺大立式包裝機充氮氣,選配空壓機排量:1.2Nm3/min-10
Ps: It enables 5 pillow packaging machines or 3 big vertical packaging machine to fill nitrogen and the matched air compressor capacity is1.2Nm3/min-10
SC-20C 碳鋼、不銹鋼
Carbon steel,
Stainless steel
20 2 ≥99.9-99.999 0.8-1.0 0.1-0.65 1300×1130×1500
注:可供七臺枕式包裝機充氮氣或五臺大立式包裝機充氮氣,選配空壓機排量:1.5Nm3/min-10
Ps: It enables 7 pillow packaging machines or 5 big vertical packaging machine to fill nitrogen and the matched air compressor capacity is 1.5 Nm3/min-10
SC-25C 碳鋼、不銹鋼
Carbon steel,
Stainless steel
25 2 ≥99.9-99.999 0.8-1.0 0.1-0.65 1480×1220×1800
注:可供八臺枕式包裝機充氮氣或六臺大立式包裝機充氮氣,選配空壓機排量:1.7Nm3/min-10
Ps: It enables 8 pillow packaging machines or 6 big vertical packaging machine to fill nitrogen and the matched air compressor capacity is 1.7 Nm3/min-10
SC-30C 碳鋼、不銹鋼
Carbon steel,
Stainless steel
30 2.5 ≥99.9-99.999 0.8-1.0 0.1-0.65 1480×1220×1800
注:可供十臺枕式包裝機充氮氣或七臺大立式包裝機充氮氣,選配空壓機排量:2.0Nm3/min-10
Ps: It enables 10 pillow packaging machines or 7 big vertical packaging machine to fill nitrogen and the matched air compressor capacity is 2.0Nm3/min-10
SC-40C 碳鋼、不銹鋼
Carbon steel,
Stainless steel
40 2.5 ≥99.9-99.999 0.8-1.0 0.1-0.65 2200×1400×1900
注:可供十三臺枕式包裝機充氮氣或九臺大立式包裝機充氮氣,選配空壓機排量:2.4Nm3/min-10
Ps: It enables 13 pillow packaging machines or 9 big vertical packaging machine to fill nitrogen and the matched air compressor capacity is 2.4Nm3/min-10
